The Jekko MPK10.2 Electric Minipicker is a compact, high-capacity 2-in-1 lifting machine designed for precision glass handling, panel installation, and pick-and-carry crane applications. Built for contractors, glaziers, installers, and industrial teams, the MPK10.2 combines the functionality of a vacuum glass robot with the flexibility of a compact electric crane.

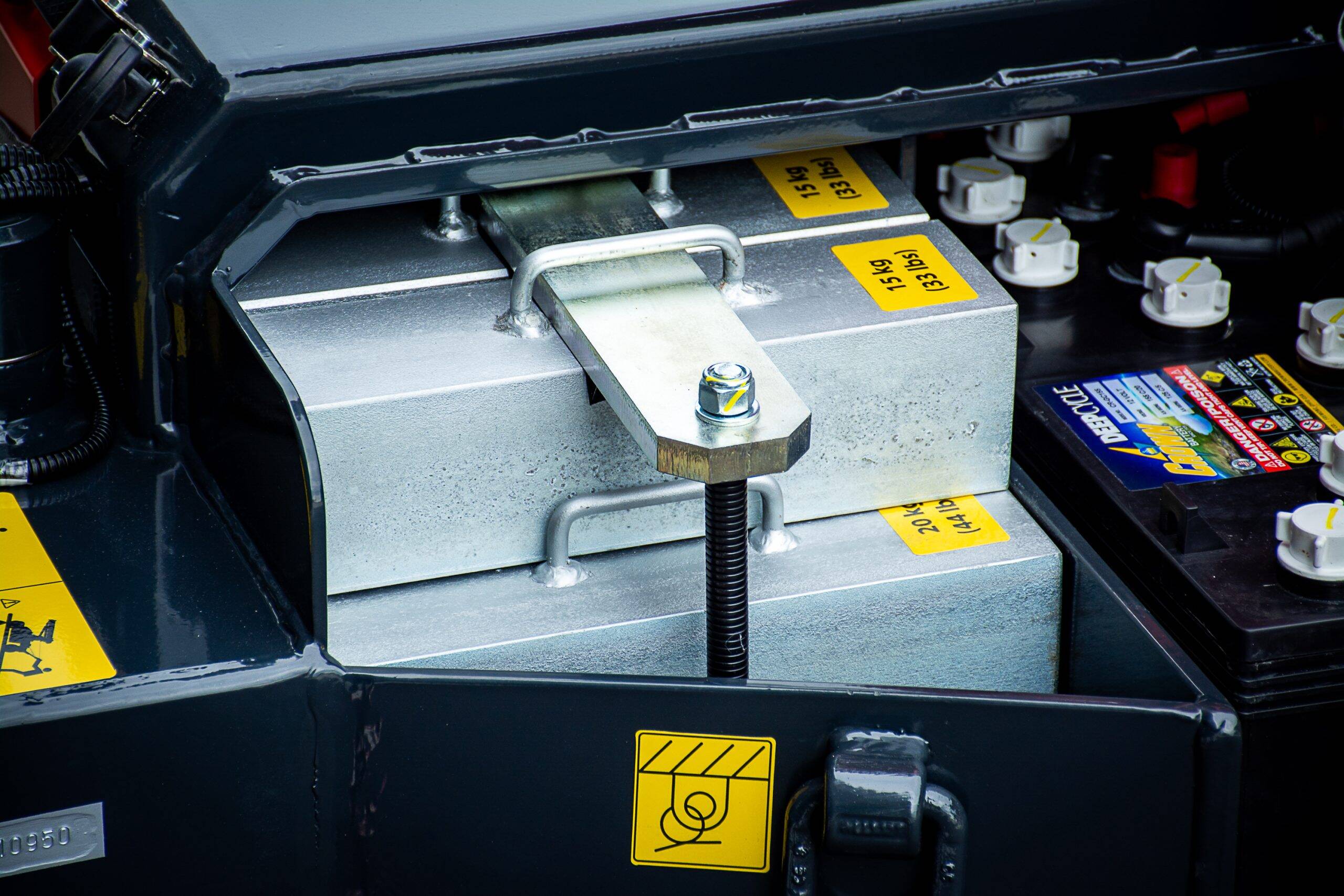

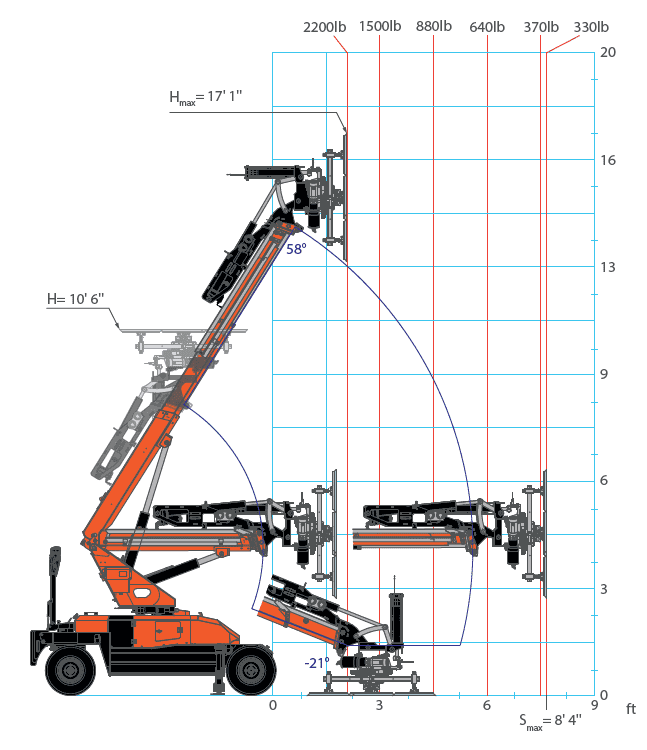

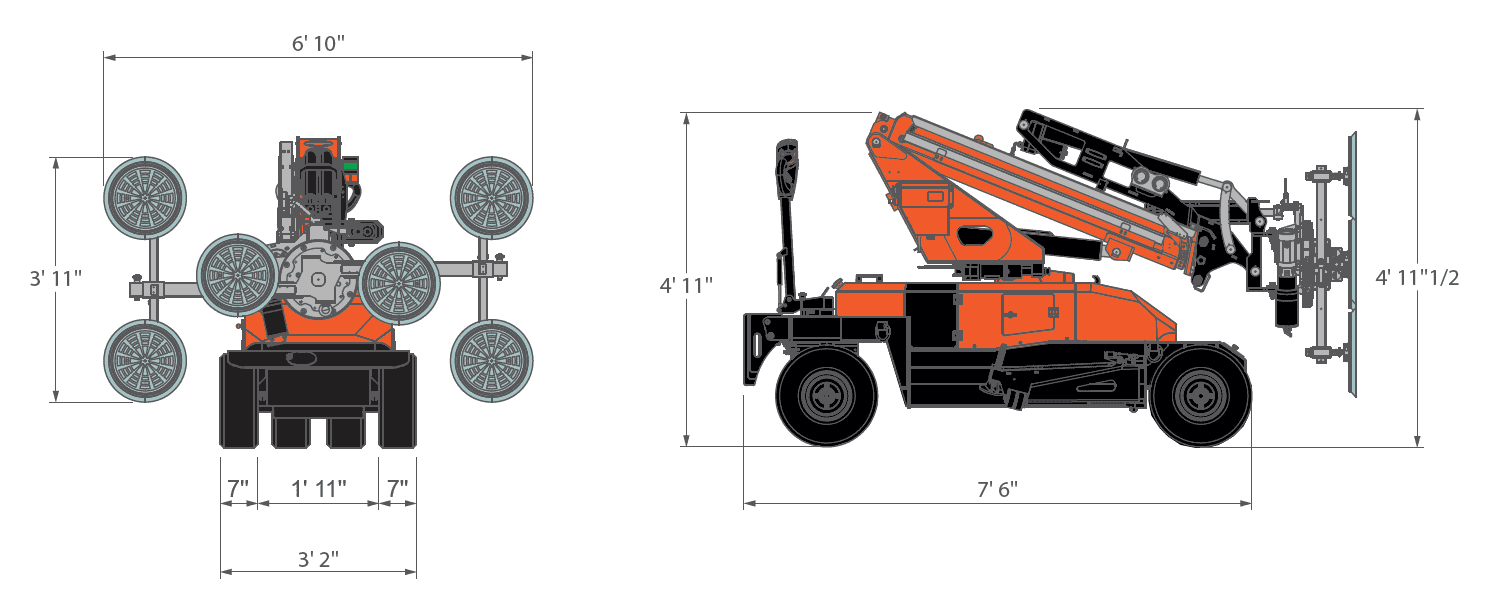

With a maximum lifting capacity of 2,180 lb (989 kg) and a maximum tip height of 17 ft 1 in (5.21 m), the Jekko MPK10.2 provides strong lifting performance in a small, manoeuvrable package. Its compact dimensions of 7 ft 6 in long x 3 ft 2 in wide x 4 ft 11 in high (2.29 m x 0.97 m x 1.50 m) make it well suited for tight indoor spaces, finished buildings, commercial glazing projects, industrial facilities, and restricted-access job sites where larger cranes or forklifts may not be practical. The machine weighs 2,810 lb (1,275 kg) in total, including 507 lb (230 kg) of removable ballast, with the base machine weighing 2,304 lb (1,045 kg).

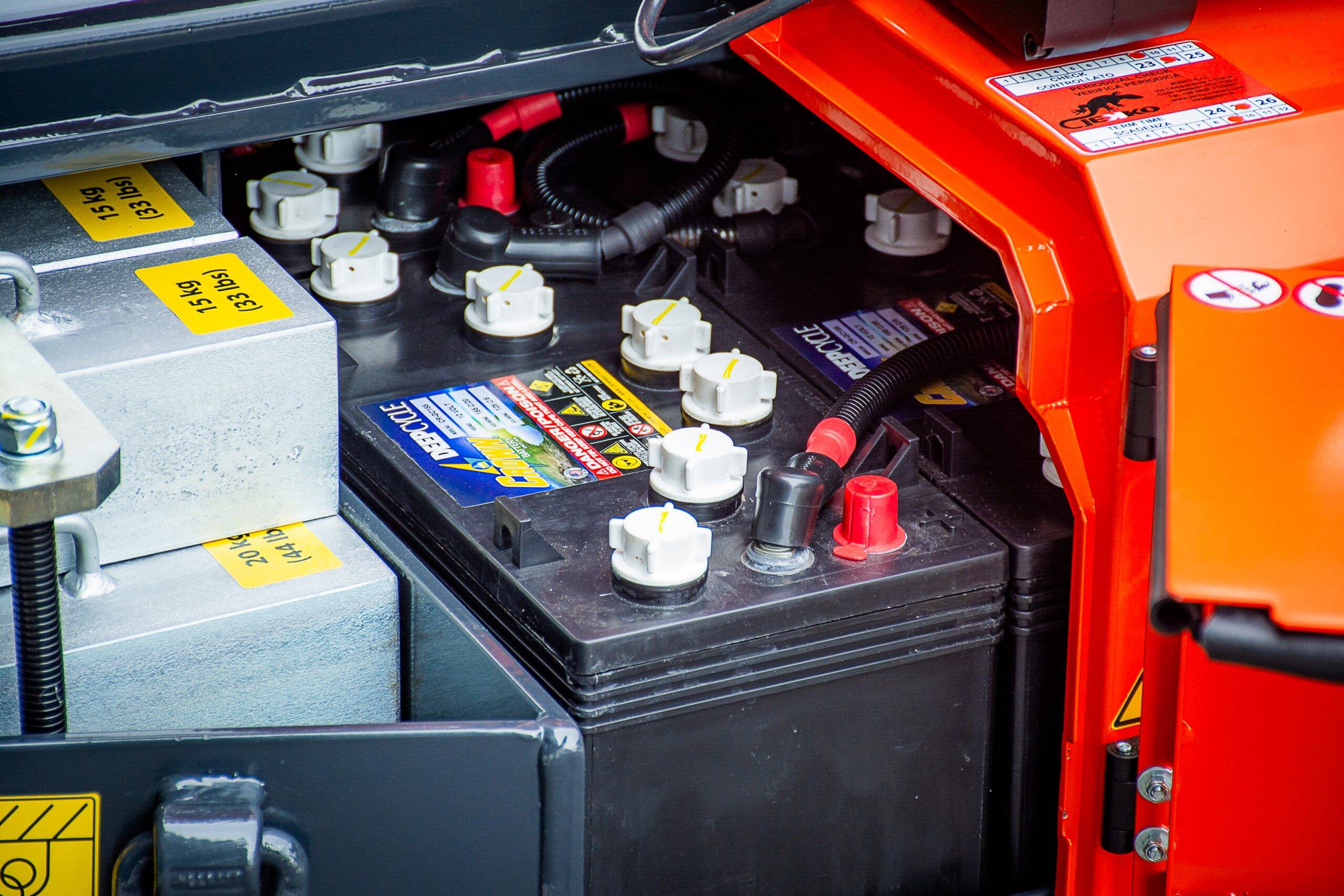

A major strength of the MPK10.2 is its fully electric operation. Powered by a 24 V 310 Ah lead-acid battery system, this electric minipicker delivers emission-free indoor performance, low maintenance requirements, and runtime of over one workday. An onboard 110V or 230V fast battery charger supports convenient charging on site, making the MPK10.2 a strong fit for indoor environments where fumes, noise, and floor protection are key concerns.

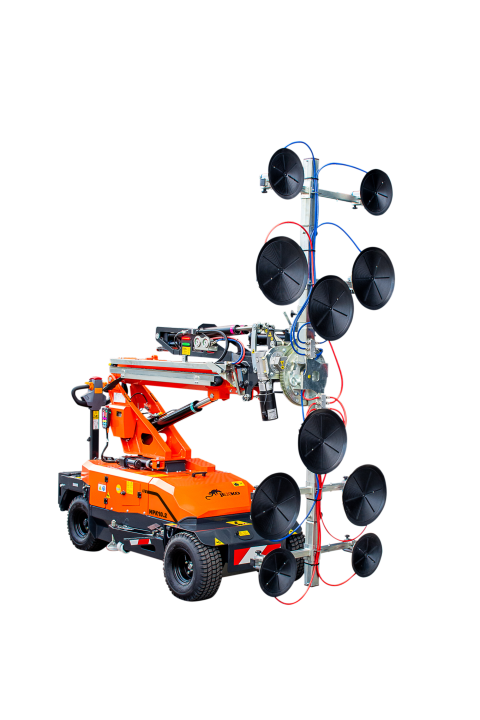

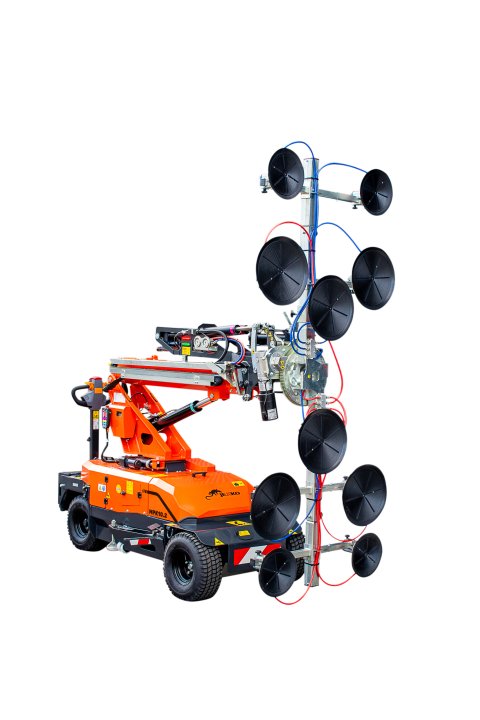

For glass and panel handling, the MPK10.2 is equipped with a vacuum manipulator rated up to 2,180 lb (989 kg). The manipulator supports up to 10 pads in modular configurations, allowing operators to adapt the machine for different glass sizes, marble, slabs, monopanels, and smooth panel materials. Pad options include 1 ft 4 in (406 mm) and 11 in (279 mm) pads. The system includes an onboard vacuum pump, two independent vacuum circuits, 360-degree rotation, tilt, swing, and a blow-off function for easier material release. The pad ball joints improve adaptability when handling uneven or delicate surfaces.

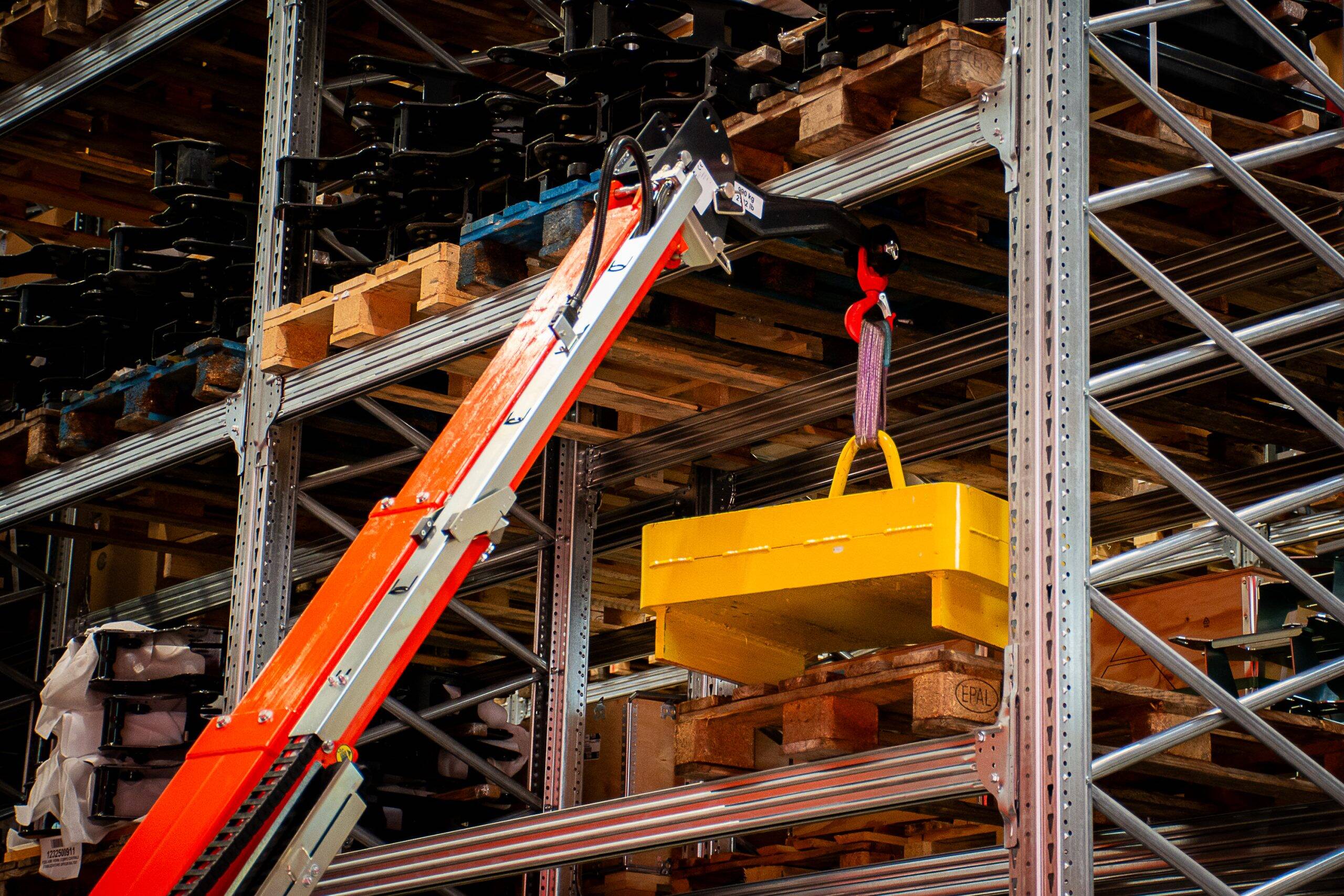

The MPK10.2 also performs as a pick-and-carry crane. It can be used with a hook rated at 2,180 lb (989 kg), a searcher hook rated at 2,180 lb (989 kg), or a manipulator hook rated at 1,320 lb (599 kg). The searcher hook offers four angle positions: +15 degrees, 0 degrees, -30 degrees, and -60 degrees, providing additional flexibility when positioning loads in tight or awkward spaces.

Operator control is designed for precision and ease of use. The optional radio remote control manages machine driving, crane functions, and manipulator functions, with proportional controls, onboard spare battery, self-diagnostics, and an emergency stop button. Wired control is also available. The boom provides turret side rotation of plus or minus 9 degrees, a boom angle range from -21 degrees to +58 degrees, and double hydraulic boom extensions for accurate placement.

For job site mobility, the Jekko MPK10.2 includes front-wheel drive with differential, a wide steering angle, side stabilisers, and optional twin front wheels. Outdoor foamed puncture-proof tires and optional indoor non-marking white tires allow the machine to work across a range of applications. Optional J-Link powered by Trackunit supports remote fleet monitoring and diagnostics.

For contractors needing more capacity than smaller minipickers while still maintaining compact electric operation, the Jekko MPK10.2 delivers a strong combination of lifting power, precise glass handling, indoor usability, and pick-and-carry versatility.
