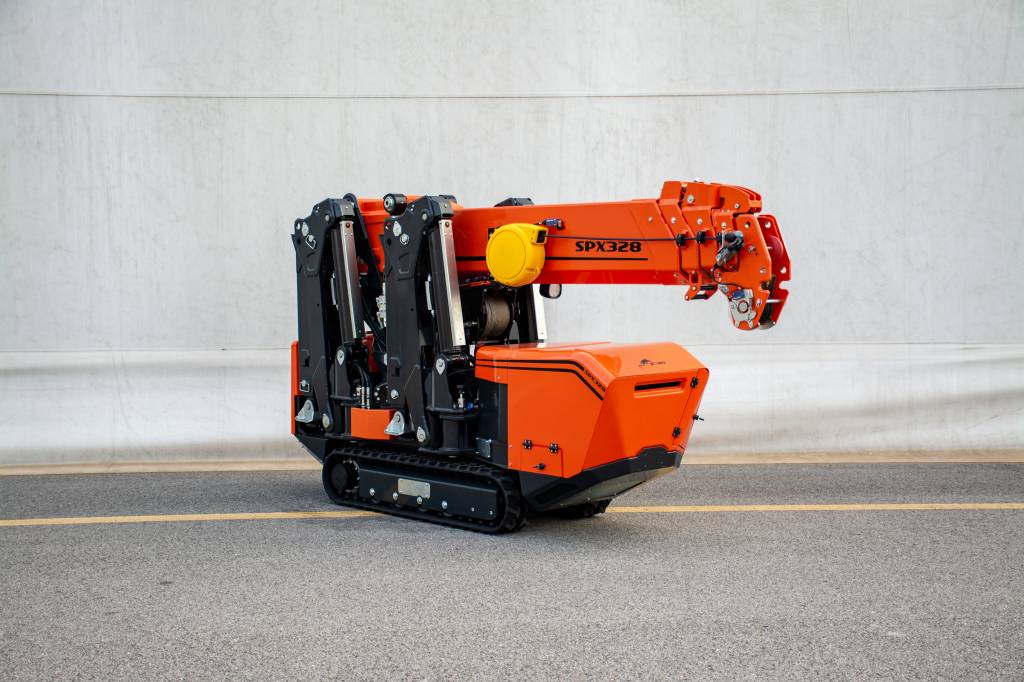

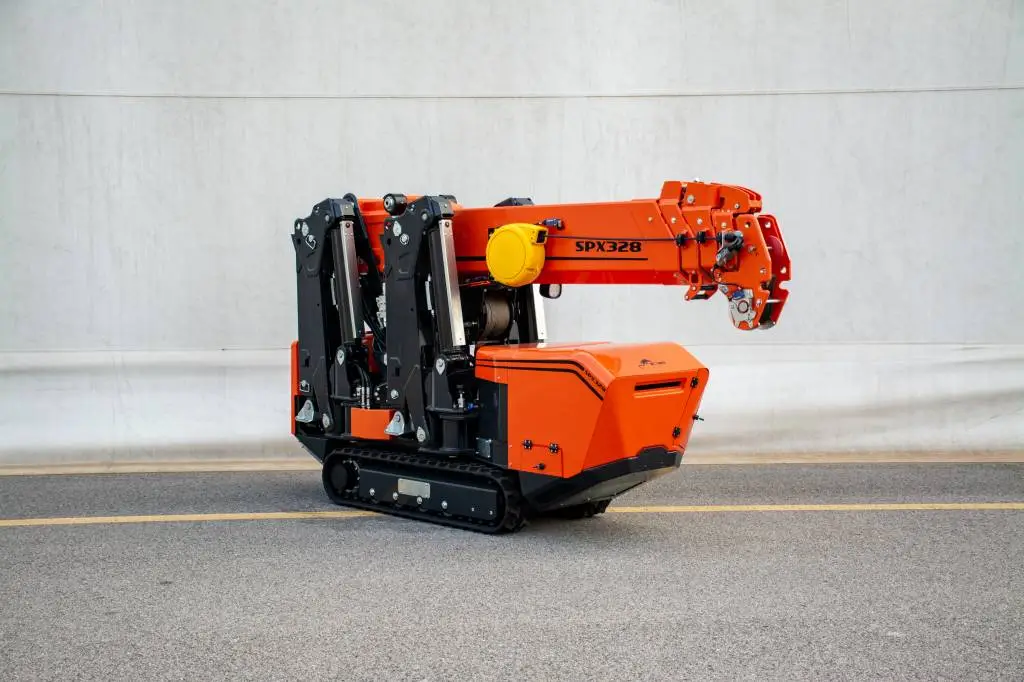

The Jekko SPX328 EVO Lithium Battery Mini Crane is a compact, electric spider crane designed for demanding lifting jobs where space, access, emissions, and precision all matter. Built for indoor and outdoor applications, the SPX328 EVO delivers the lifting power of a larger crane in a narrow, highly manoeuvrable package that can access areas conventional cranes cannot reach.

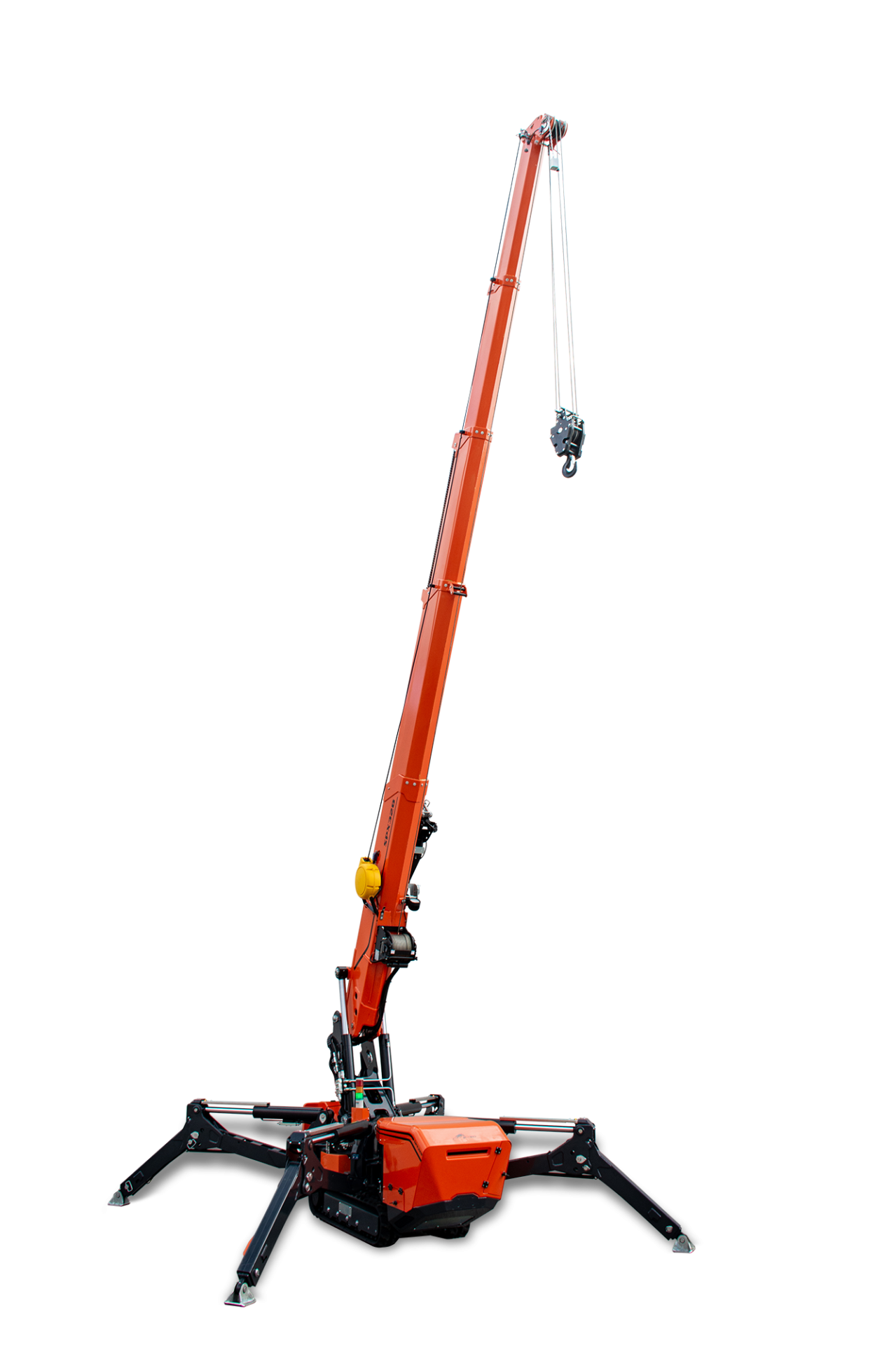

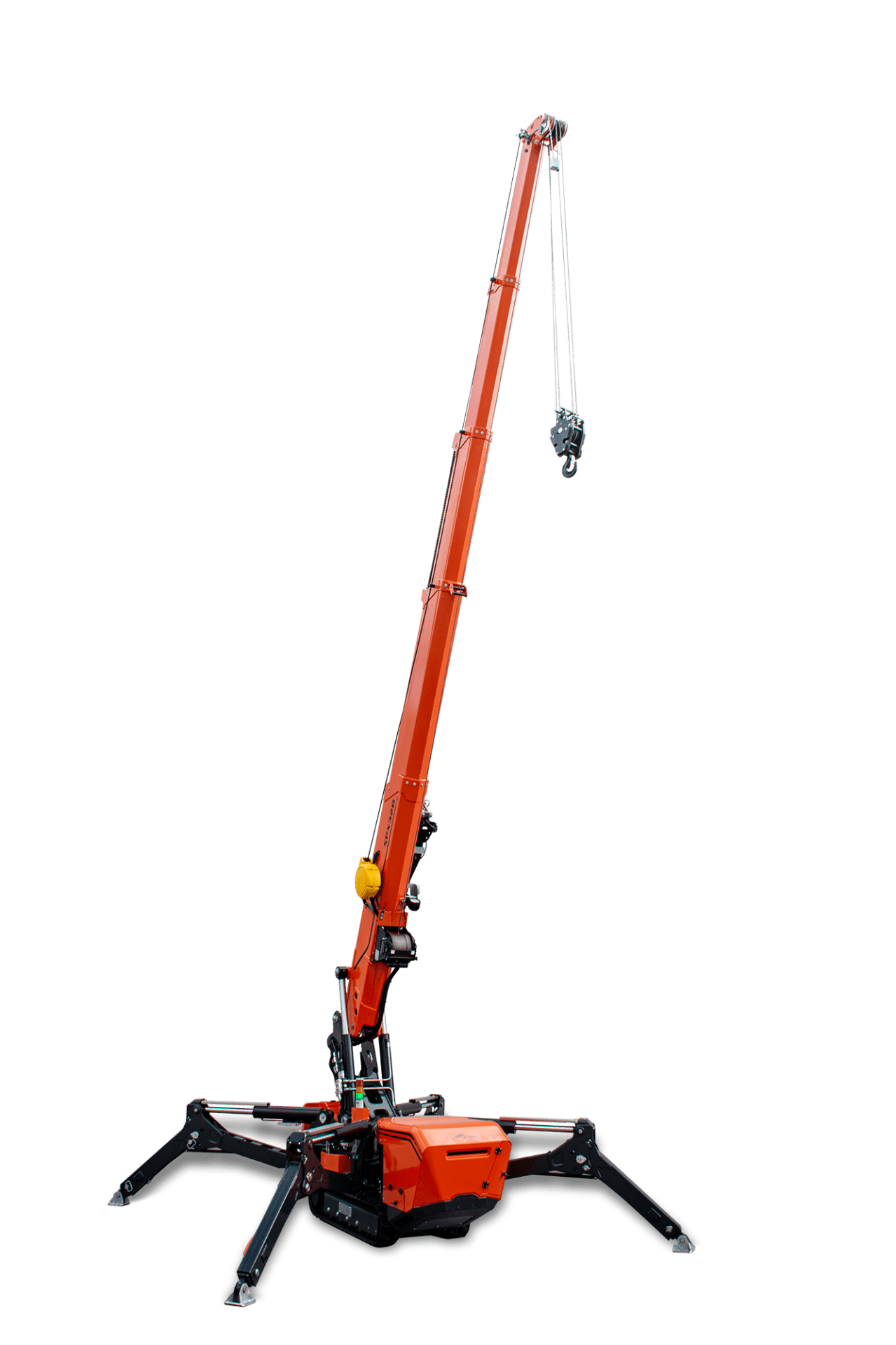

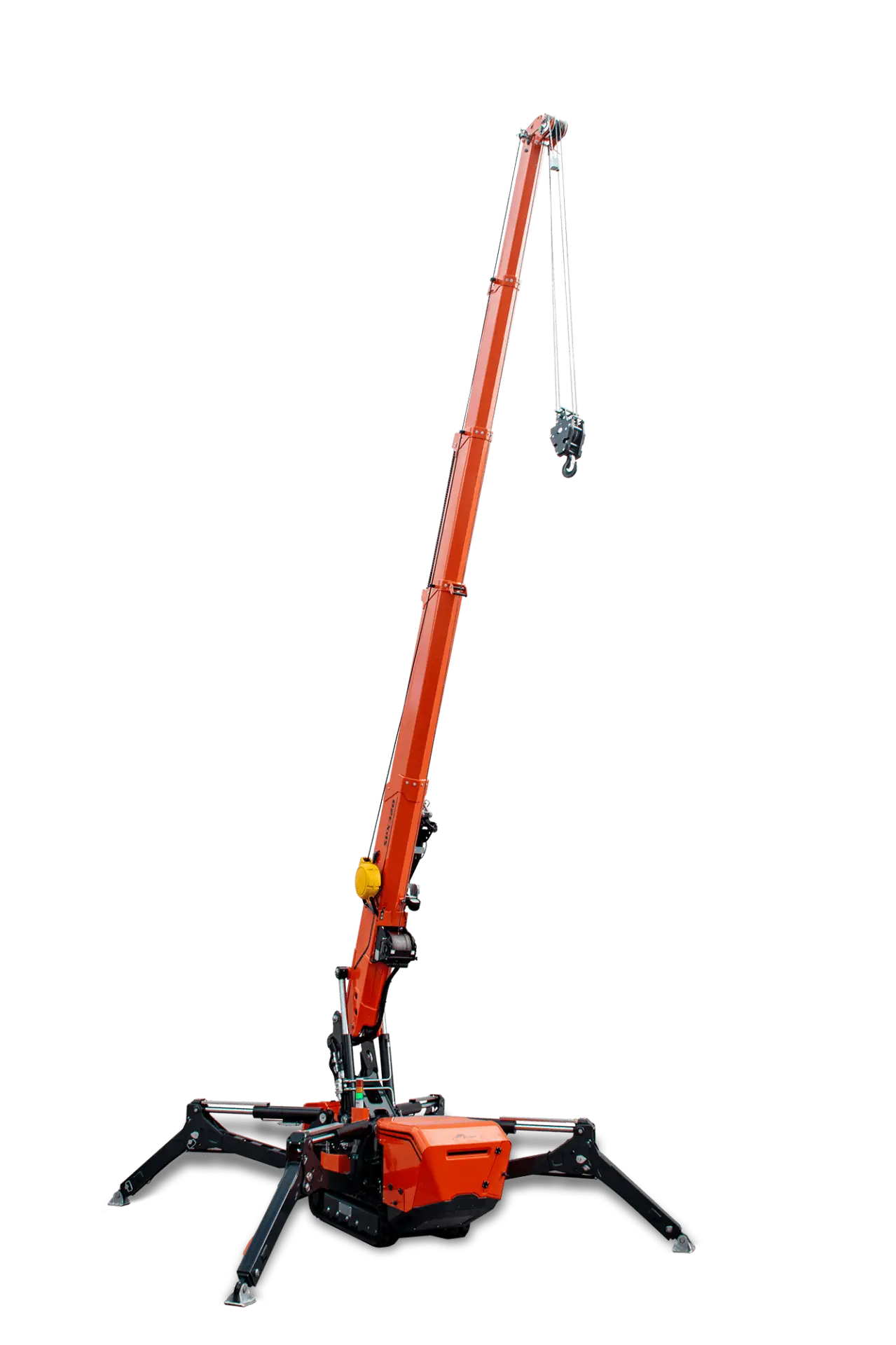

With a maximum lifting capacity of 6,173 lb (2,800 kg), a maximum tip height of 42.7 ft (13.0 m), and compact transport dimensions of 9.8 ft long x 2.4 ft wide x 5.2 ft high (2,990 mm x 740 mm x 1,600 mm), the SPX328 EVO is well suited for tight job sites, narrow doorways, industrial facilities, construction projects, glazing work, plant maintenance, and other confined-space lifting applications. Its compact footprint allows it to move through restricted access points while still offering strong lifting performance once positioned.

Powered by a lithium battery system, the Jekko SPX328 EVO is ideal for indoor operation and environmentally sensitive job sites. The electric power system provides zero-emission operation, reduced noise, and low maintenance requirements compared with traditional combustion-powered equipment. The onboard 110/230V fast charger supports efficient charging, including 0 to 80 percent charging in approximately 3 hours on 230V, or approximately 4.5 hours on 110V. Operators can also work while charging, helping reduce downtime on busy job sites.

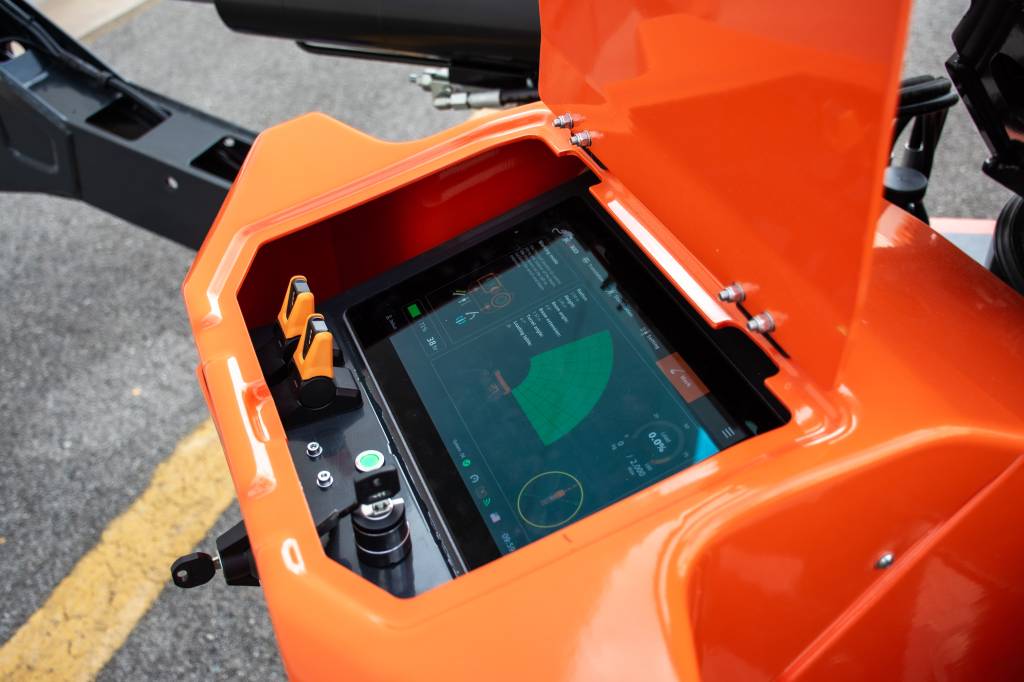

The SPX328 EVO is engineered for precision and operator confidence. A 10 in (25.4 cm) IP66 heavy-duty touch display provides live load chart information, stability area feedback, onboard video tutorials, self-diagnostics, and troubleshooting assistance. These features help operators work more efficiently while improving job site safety and control.

For lifting accuracy, the SPX328 EVO includes dynamic load sway control, automatic speed adjustment, automatic movement limitation, and components designed to maximize stiffness and load stability. These systems help support smooth, controlled movements when placing delicate or high-value materials such as glass, steel, machinery, or mechanical equipment.

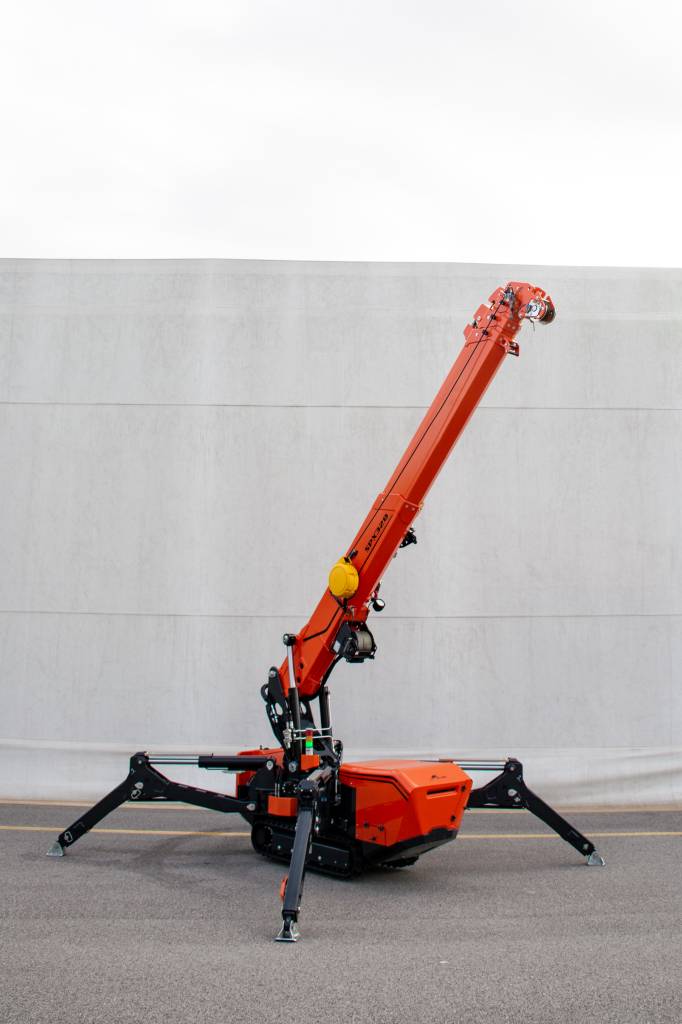

The crane’s independent outrigger configuration, three outrigger setup options, and self-levelling capability allow it to adapt to a variety of site conditions. Its small footprint and strong lifting capacity-to-size ratio make it a practical choice for contractors and facilities teams that need reliable lifting performance in areas with limited working room. The unit can travel through an approximately 31.5 in (800 mm) doorway, making it valuable for interior projects where access is limited.

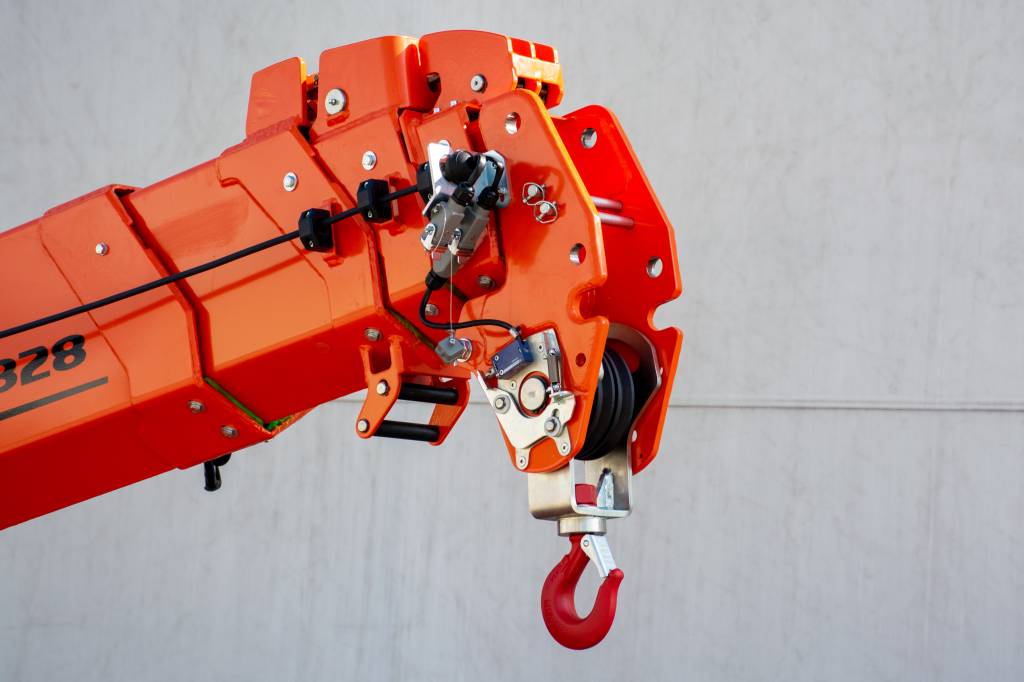

The SPX328 EVO also supports multiple crane configurations and attachments. Available tools include a mechanical jib, electric jib, searcher hook, and glass manipulator, making the unit highly versatile across applications such as glass installation, industrial maintenance, steel construction, aviation and maritime work, and general construction lifting. Optional winch configurations are available, including 1,543 lb with 197 ft rope (700 kg with 60 m rope) or 1,323 lb with 443 ft rope (600 kg with 135 m rope).

For safety and fleet visibility, the SPX328 EVO includes a full LMI system, anti-crash system, display feedback, and optional J-Link powered by Trackunit for remote fleet monitoring and diagnostics.

For contractors who need a compact, powerful, zero-emission lifting solution, the Jekko SPX328 EVO mini crane offers an excellent balance of lifting capacity, access, precision, and efficiency.
