The Jekko SPX532.2 Diesel Bi-Energy Mini Crane is a compact, high-performance spider crane designed for contractors, industrial operators, and specialty lifting teams that need strong lifting capacity in restricted access environments. Combining compact dimensions, flexible power options, and advanced load handling systems, the SPX532.2 is built for challenging lifting work where traditional cranes may be too large or impractical.

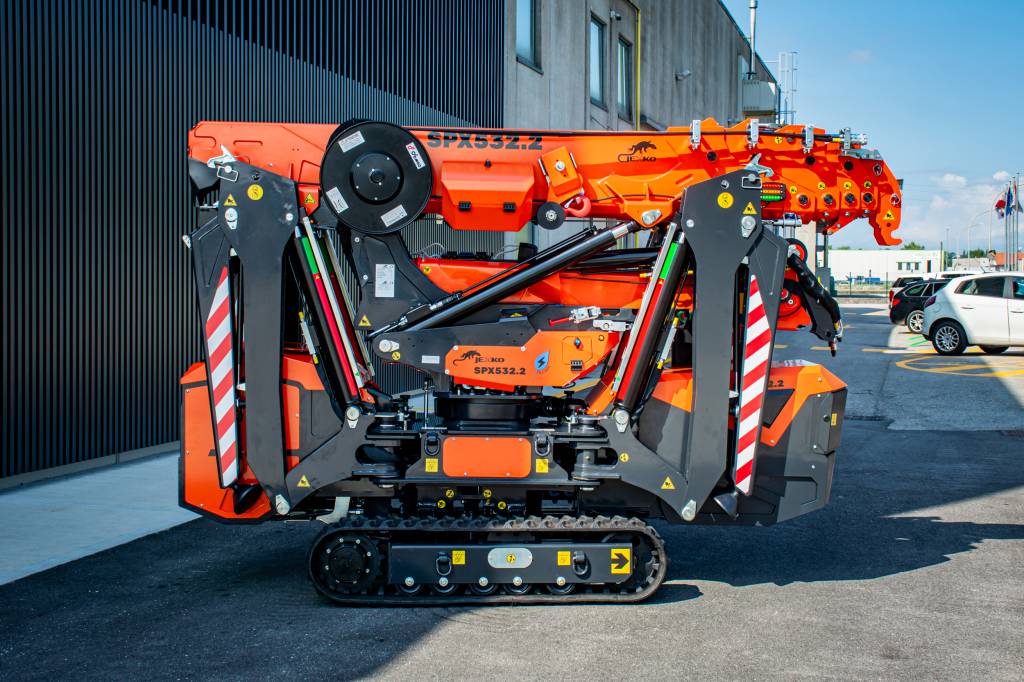

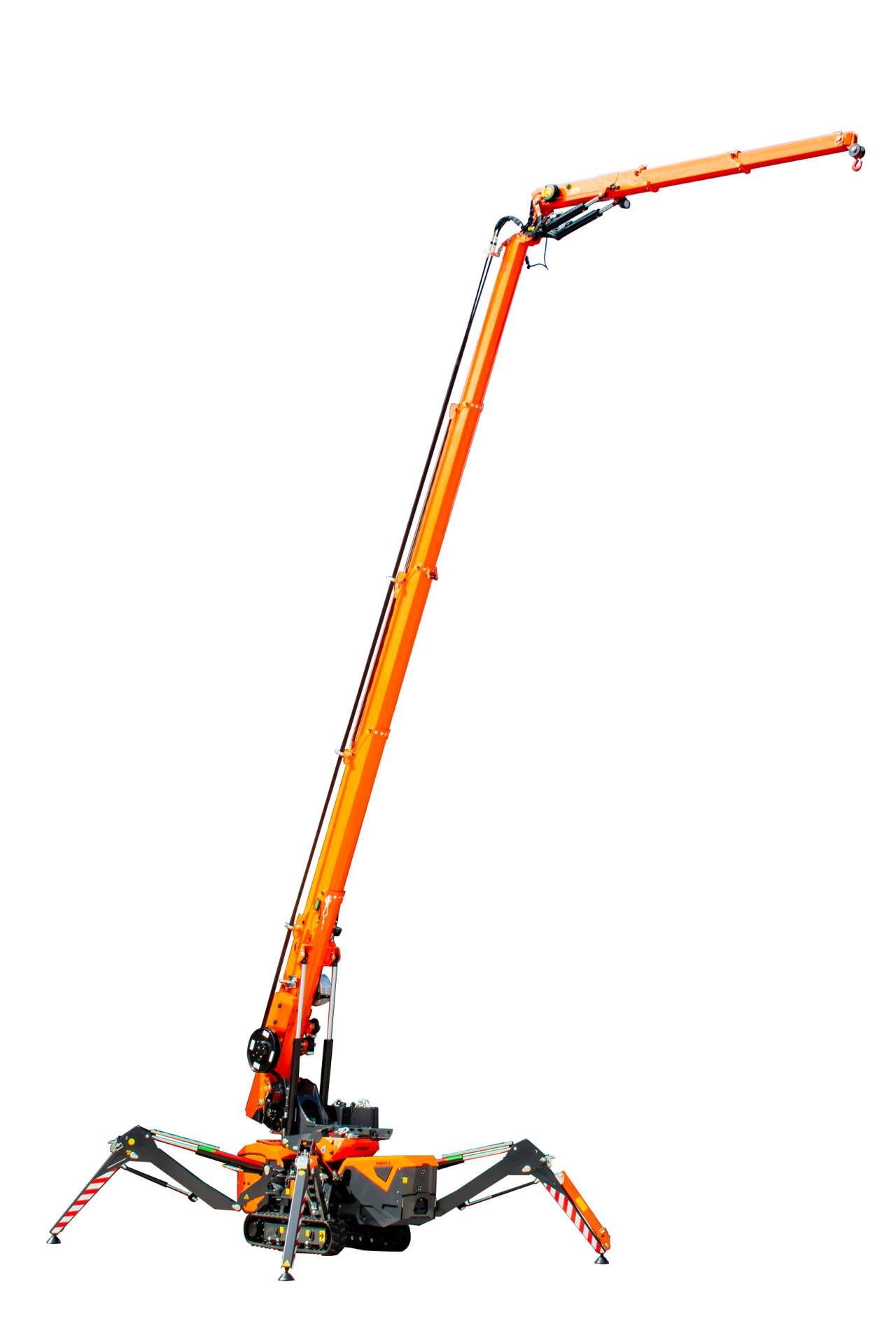

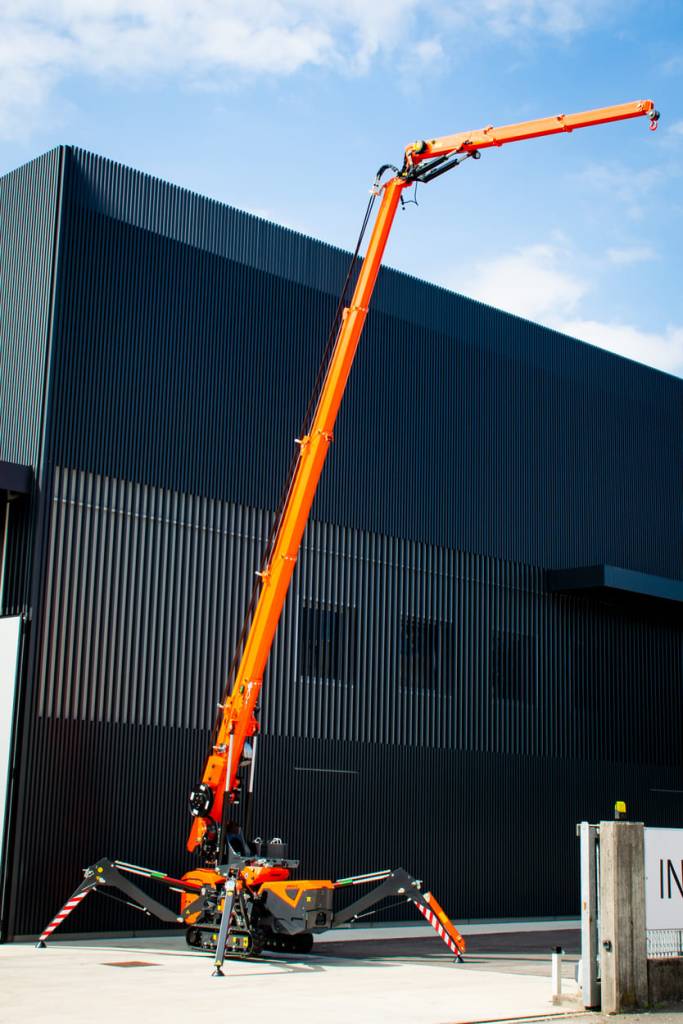

With a maximum lifting capacity of 7,055 lb (3,200 kg) and a maximum tip height of 55.8 ft (17.0 m), the Jekko SPX532.2 delivers impressive lifting capability from a compact tracked base. Its transport dimensions are only 10.3 ft long x 2.5 ft wide x 6.5 ft high (3,140 mm x 770 mm x 1,990 mm), allowing the crane to access tight job sites, narrow entrances, industrial spaces, and confined work areas. The unit weighs approximately 5,858 lb (2,657 kg), making it a practical choice for projects that require a balance of lifting strength, mobility, and compact footprint.

The SPX532.2 is powered by a diesel bi-energy system. The standard diesel engine is a 24.8 hp (18.5 kW) Kubota diesel engine with variable-speed engine management designed to reduce fuel consumption, lower noise, and support faster crane movements. An optional electric power pack allows 100 percent electric operation, making the crane suitable for emission-free and low-noise indoor work where diesel operation may not be permitted or preferred.

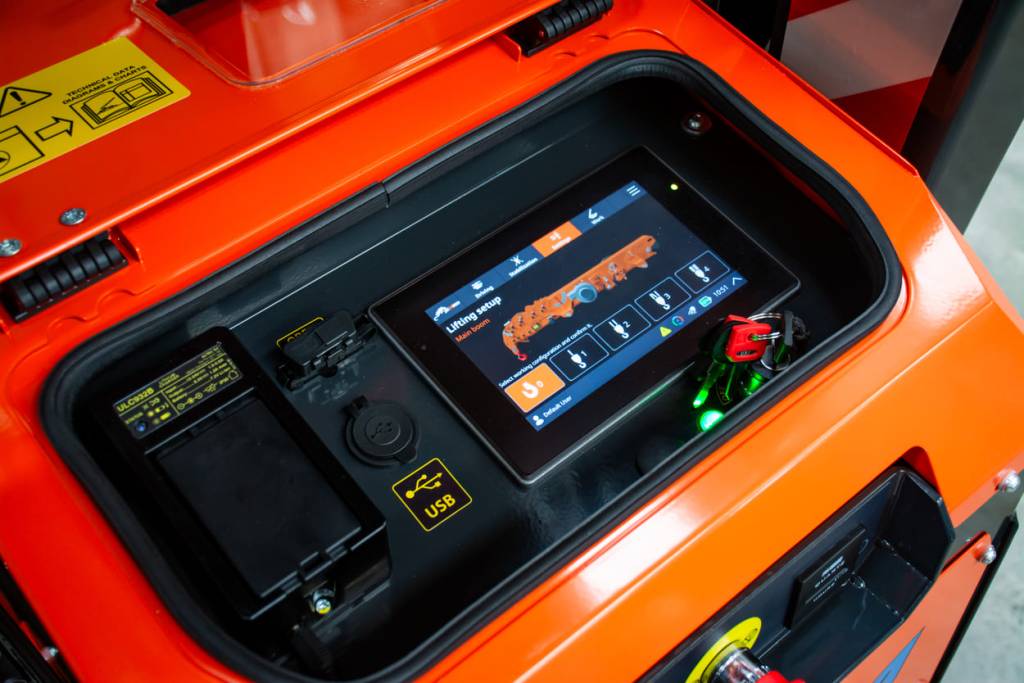

Operator usability is a major strength of the SPX532.2. The crane includes radio control with optimized usability and an improved layout, plus a 7 in (178 mm) IP66 heavy-duty touch display. The display provides live load chart information, stability area feedback, onboard crane assistant functionality, self-diagnostics, and troubleshooting support. These features help operators work more efficiently while improving control and job site safety.

For precision lifting, the Jekko SPX532.2 includes dynamic load sway control, automatic speed adjustment, automatic movement limitation, and structural components engineered to maximize stiffness and load stability. These systems help support smooth, accurate placement of heavy or delicate loads, including glass, steel, mechanical equipment, pipe, and specialty materials.

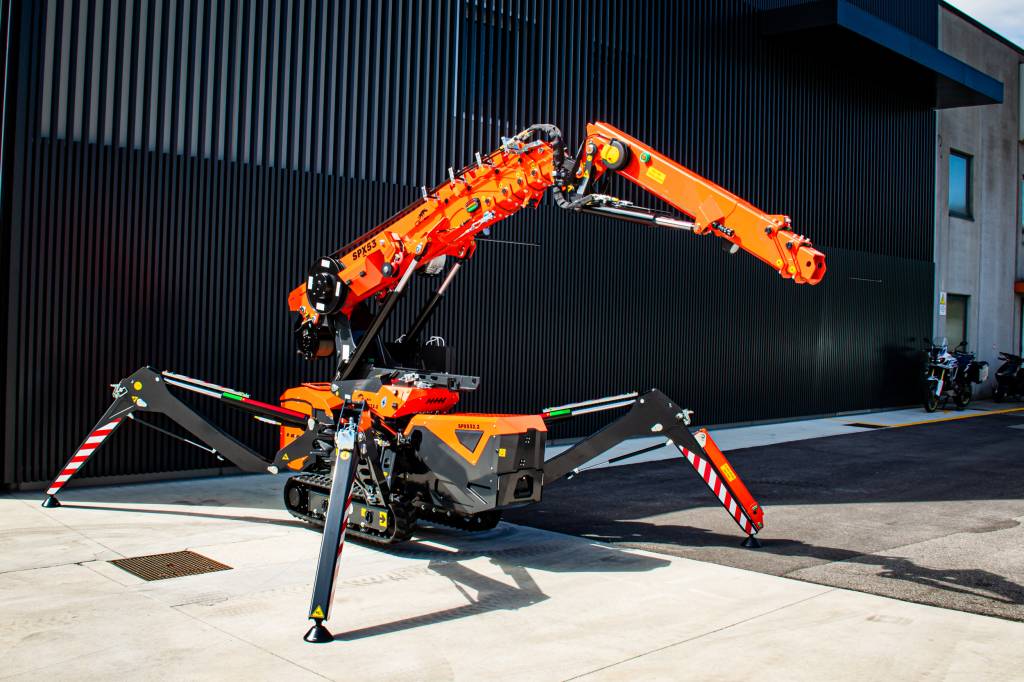

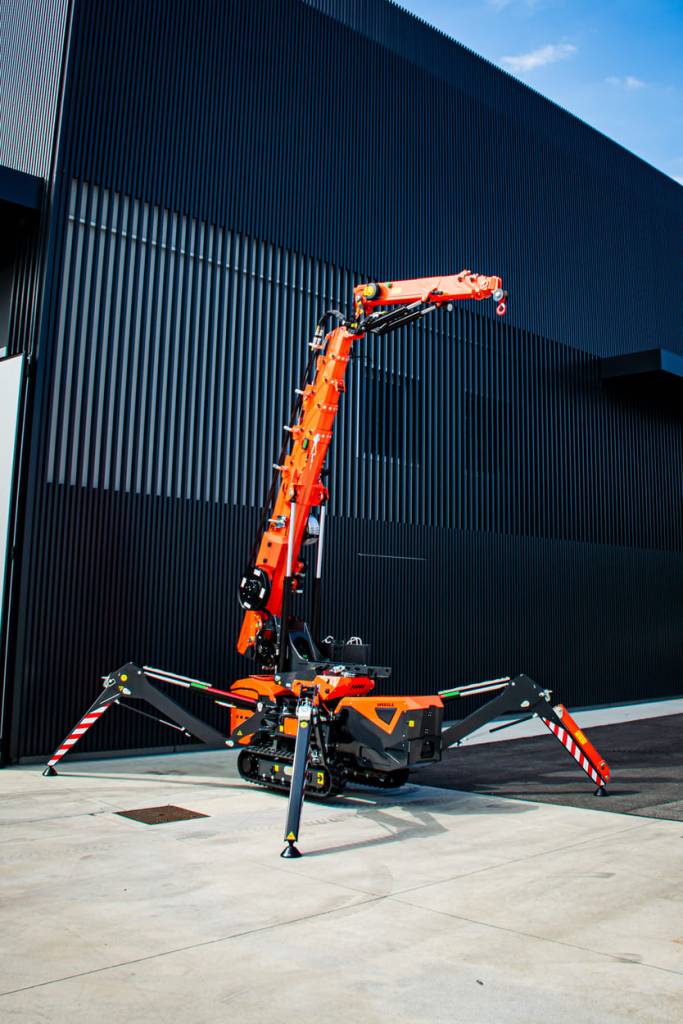

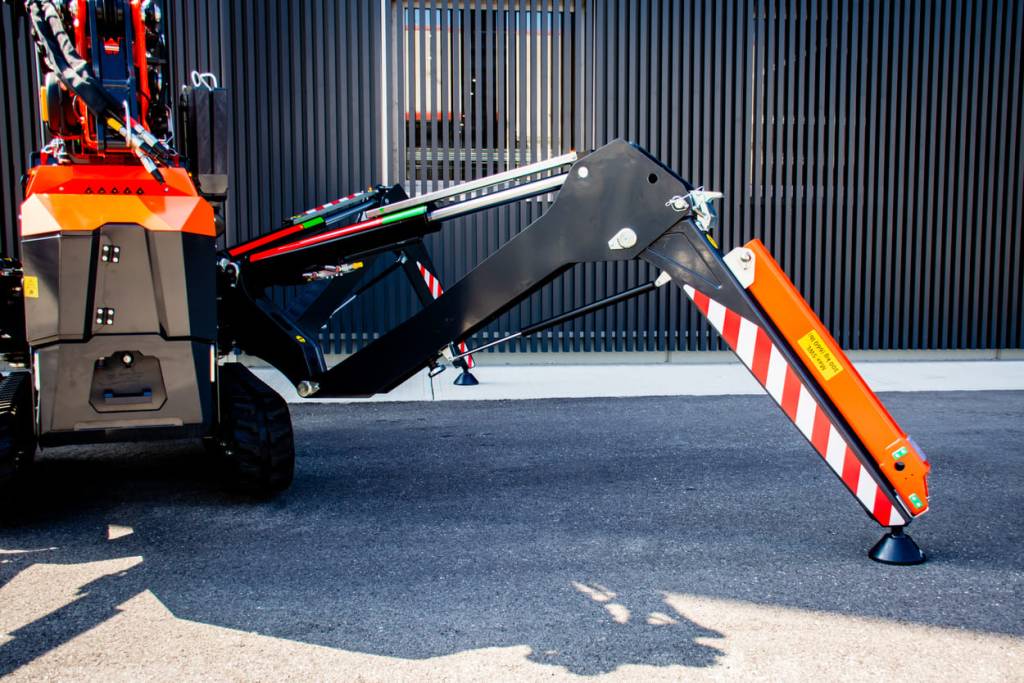

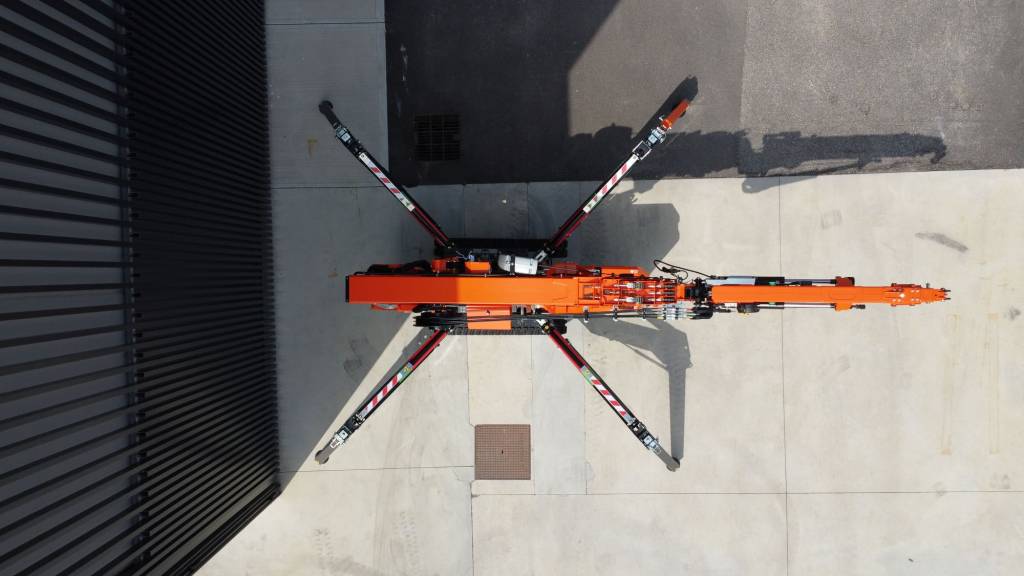

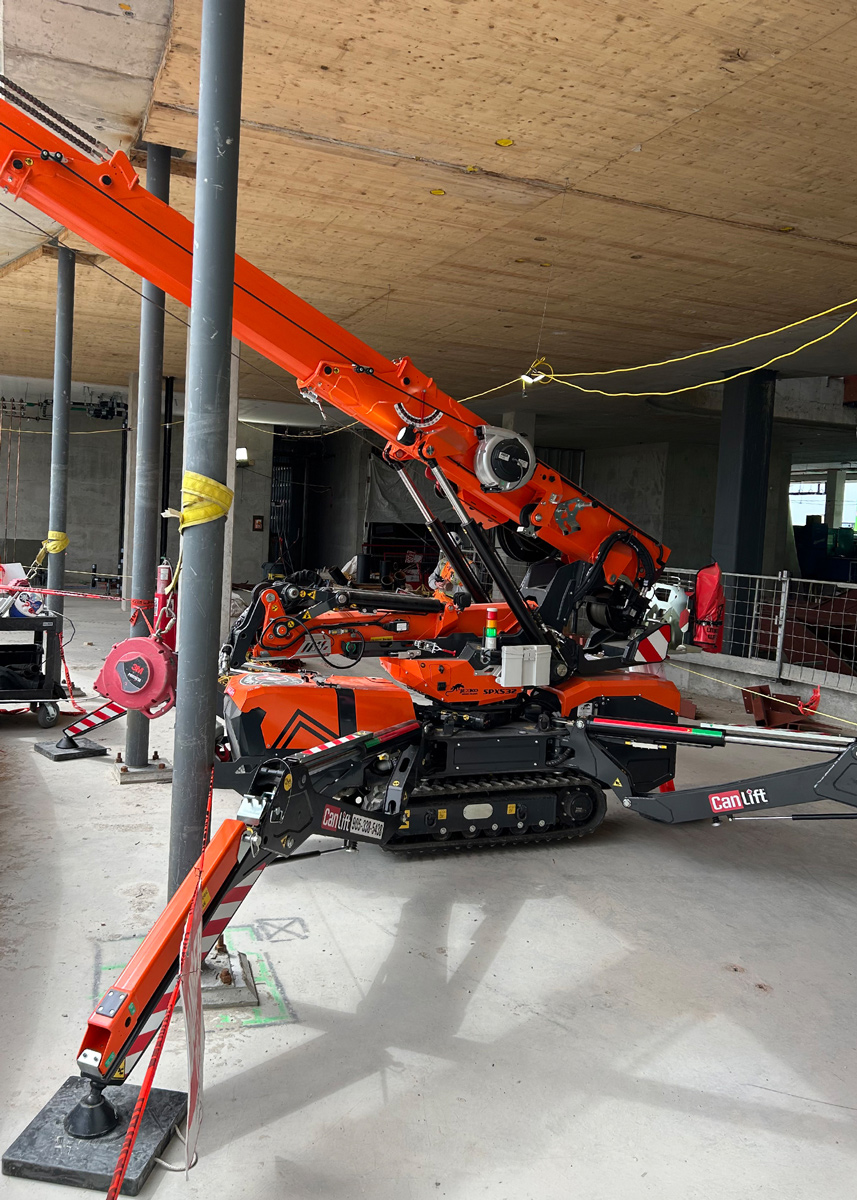

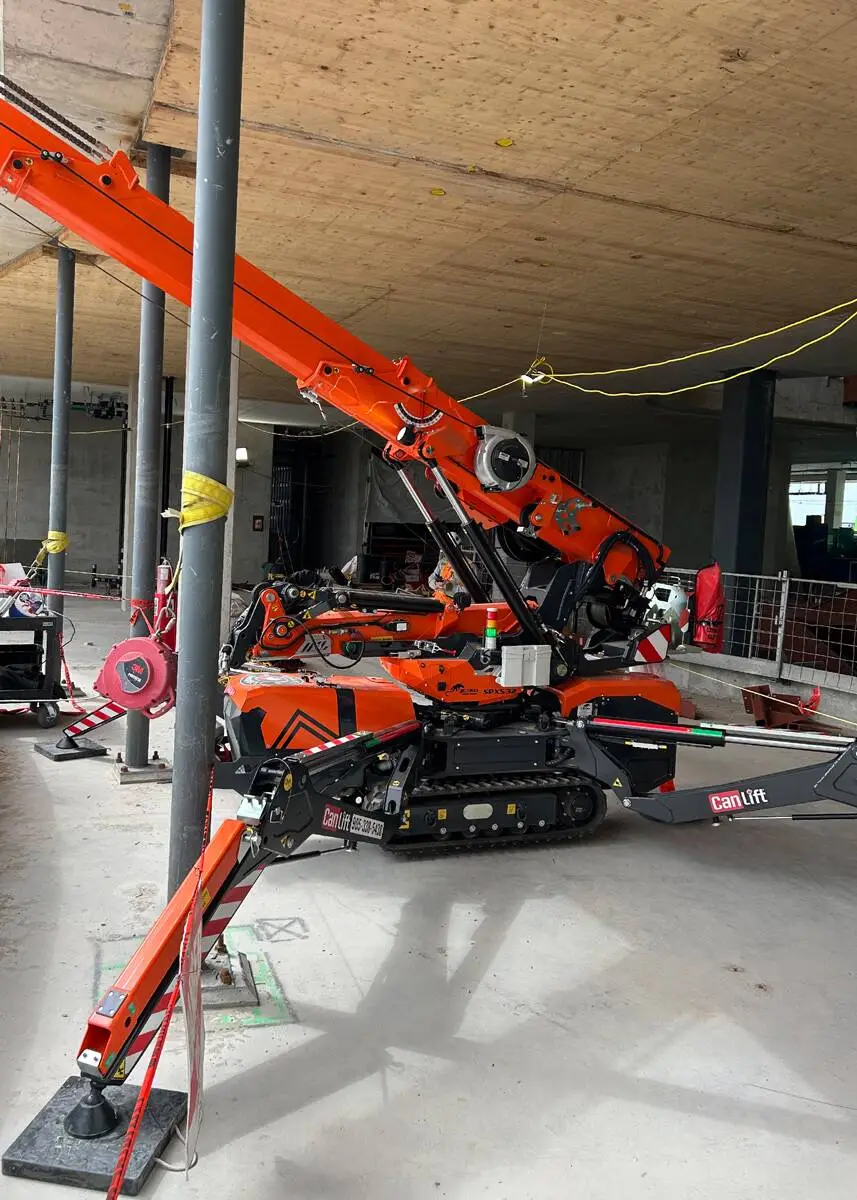

The crane is also designed for flexible site setup. Its compact footprint includes independent outrigger configuration, 9 outrigger step positions from 0 degrees to 90 degrees, two outrigger extensions, and self-levelling capability. It can pass through an approximately 31.5 in (800 mm) doorway, making it useful for interior work, restoration projects, and restricted-access industrial environments.

The SPX532.2 supports multiple crane configurations and lifting attachments. Available tools include a hydraulic jib, searcher hook, beam/pipe manipulator, and glass manipulator. The hydraulic jib provides 2,205 lb (1,000 kg) safe working load capacity and extends up to 16.7 ft (5.1 m), with hook or winch operation and a unique self-installation system. The winch includes 262 ft (80 m) of rope and supports 1,764 lb (800 kg) capacity in single fall or 7,055 lb (3,200 kg) capacity in four falls.

For companies needing a compact crane with serious lifting power, flexible diesel/electric operation, and strong indoor/outdoor versatility, the Jekko SPX532.2 mini crane is a practical solution for construction, glazing, industrial maintenance, machinery moving, infrastructure work, and confined-space lifting applications.
