The JLG ES1930M Micro-Sized Electric Scissor Lift is a compact, lightweight, and highly manoeuvrable slab scissor lift designed for productive work at height in tight spaces. Built for indoor and outdoor use on firm, level surfaces, the ES1930M is ideal for facility maintenance, electrical work, mechanical trades, warehouse operations, retail environments, commercial buildings, and light construction tasks where a standard scissor lift may be too large.

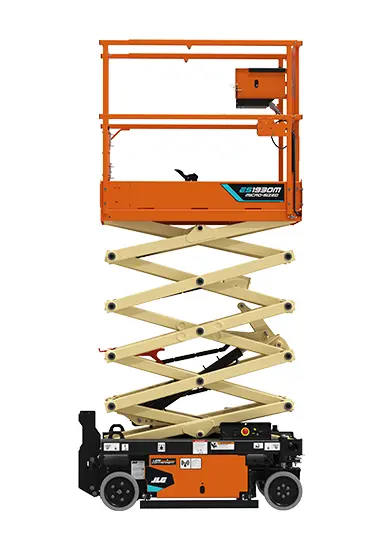

With a maximum indoor platform height of 18 ft 6 in (5.64 m) and an outdoor platform height of 15 ft (4.57 m), the JLG ES1930M gives operators practical access for lighting, HVAC, sprinkler systems, ceiling work, signage, inventory access, service work, and general overhead tasks. The platform has a 500 lb (227 kg) capacity and supports 2 indoor occupants or 1 outdoor occupant. When the optional integrated mid-rail deck is in use, the machine is limited to 1 occupant. The platform extension is rated for 254 lb (115 kg) and extends 21.6 in (55 cm), helping operators reach closer to work areas without constantly repositioning the lift.

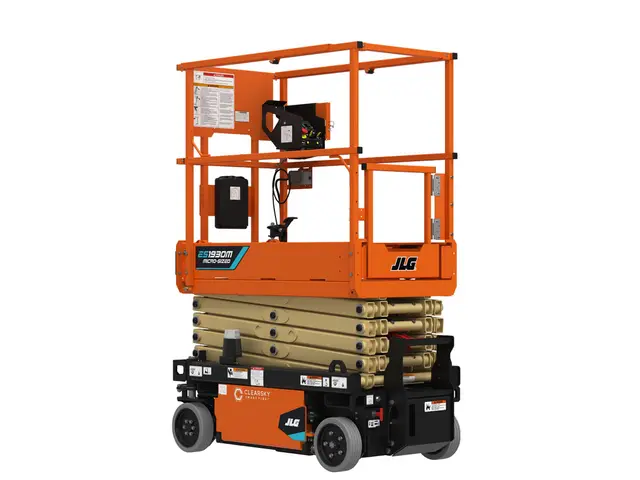

The ES1930M is designed specifically for tight access. Its narrow 30 in (76 cm) machine width, compact 58.2 in (1.48 m) machine length, and low 78.1 in (1.98 m) stowed height with fixed rails allow it to fit through many standard doorways and operate in congested work areas. The platform measures 24.4 in x 49.2 in (60 cm x 1.25 m), giving the operator a practical work area while keeping the overall machine footprint small. The zero inside turning radius and 55 in (1.40 m) outside turning radius make the ES1930M easy to position in narrow aisles, finished interiors, storage rooms, retail spaces, and facility corridors.

Powered by a 24V DC electric drive system with 2 x 12V 130 amp-hour batteries and a 650W Delta Q charger, the ES1930M is built for quiet, emission-free operation. JLG’s spec sheet highlights greater duty cycles compared with the market leader, helping maximize uptime and reduce charging interruptions. The machine has a lowered drive speed of 3.0 mph (4.8 km/h) and a raised drive speed of 0.5 mph (0.8 km/h), with fully elevated drive capability indoors and drive height limited to 15 ft (4.57 m) outdoors.

The ES1930M includes practical features for protecting finished work environments. A standard leak containment system uses custom-fit trays to capture potential leaks, helping protect delicate flooring and interior surfaces. Non-marking tires, electric drive, a diamond tread steel deck, and compact dimensions make it a strong fit for schools, hospitals, offices, warehouses, retail stores, and other sensitive indoor spaces.

Operator-focused features include proportional controls, movable and removable platform control box, self-closing gate, USB charger and phone holder, 110V AC receptacle in the platform, horn, hourmeter, battery condition indicator, lanyard attachment points, and foot-actuated deck extension. Standard safety and service features include active pothole protection, load sensing system, tilt alarm and light, all-motion alarm, manual descent cable, analyzer port for diagnostics, forklift pockets, lifting and tie-down points, and ClearSky Smart Fleet hardware.

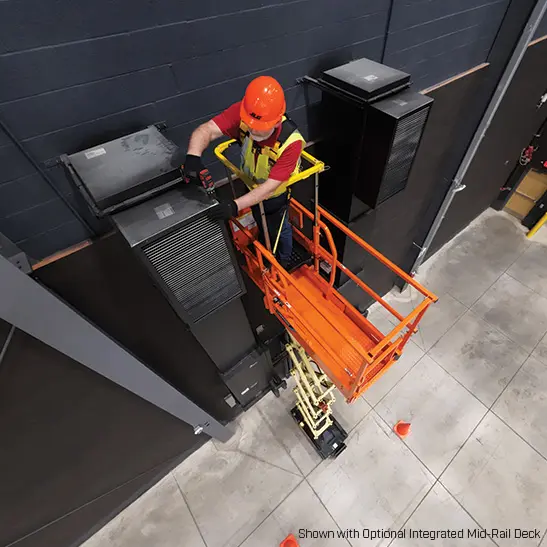

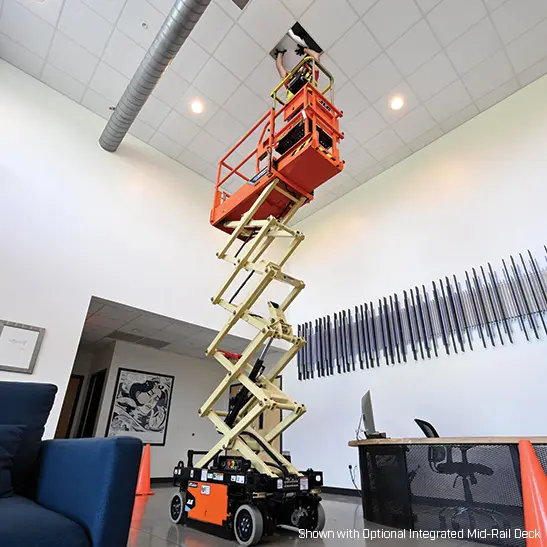

Available options include a 900W inverter, anti-vandalism package, AGM or lithium-ion batteries, hostile environment package, SkySense enhanced detection system, white noise alarm, and an integrated mid-rail deck that adds 19.5 in (50 cm) of height inside the platform.

For contractors and facilities that need a compact electric scissor lift with excellent manoeuvrability, low stowed height, fixed rails, and strong indoor productivity, the JLG ES1930M is a practical solution for tight-access work at height.
